Storage Unit - 16Ft

Maximum Storage for Industrial Needs

The 16′ Storage Unit is our largest offering, designed for industrial operations that demand maximum storage capacity. With over 1,000 cubic feet of space, it’s the go-to solution for warehouses, manufacturing facilities, and large property portfolios.

Built with upgraded 12-gauge industrial steel, this unit is engineered to withstand the most demanding environments. The reinforced floor supports heavy equipment, pallet jacks, and even small forklifts.

Optional climate control packages make this unit suitable for temperature-sensitive inventory, while multiple door configurations provide flexible access options for your specific workflow.

What's Included

• Wall panels (4)

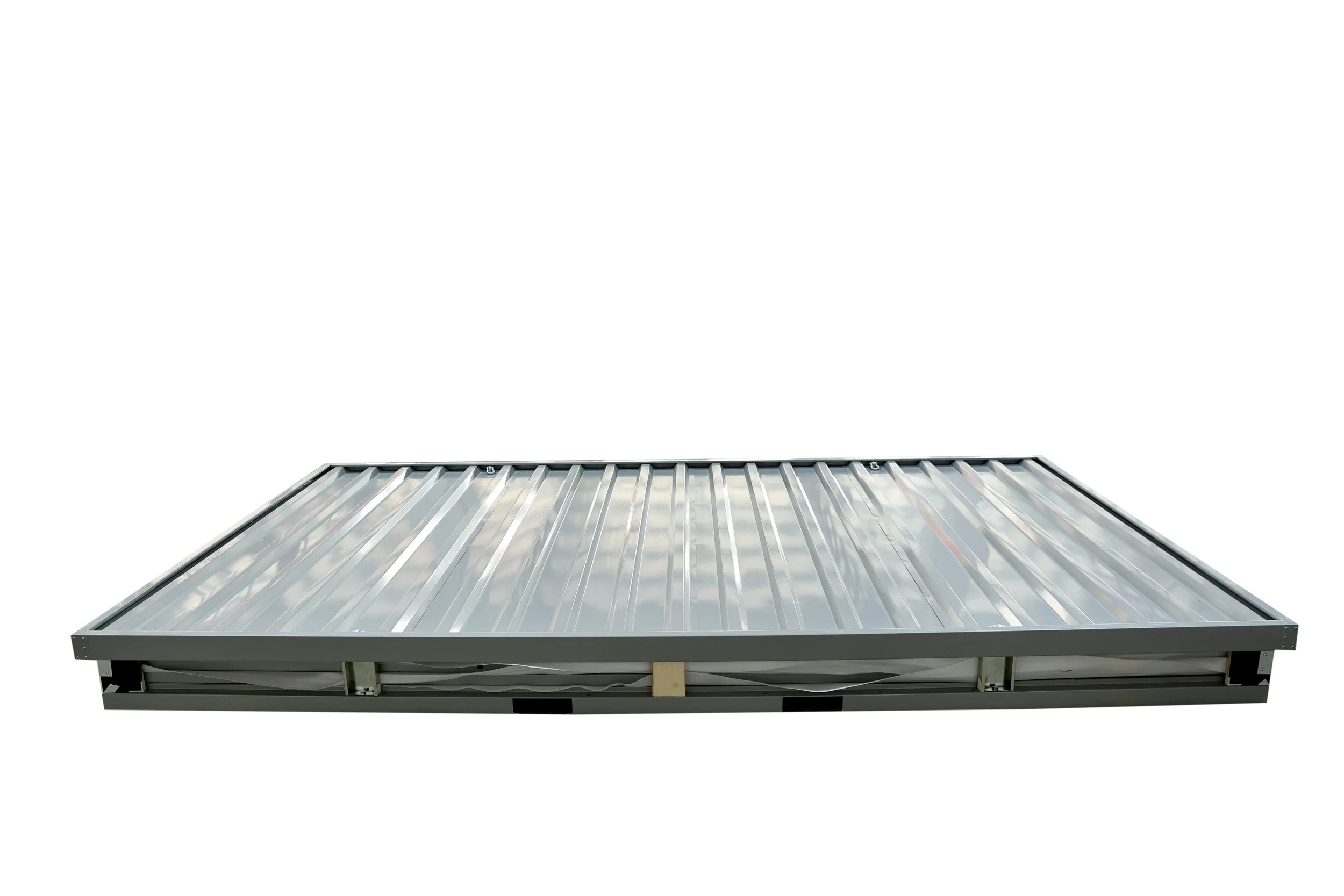

• Roof panel

• Reinforced floor

• Double doors

• Hardware kit

• Security lock box

• Tie-down rings (12)

Maximum Capacity

Over 1,000 cubic feet of storage space for large-scale operations.

Industrial-Grade Steel

12-gauge corrugated steel walls for maximum durability and security.

Multiple Access Points

Optional side door and personnel door configurations available.

Climate Options

Available with insulation and HVAC prep for climate-sensitive storage.

Heavy-Duty Stacking

Reinforced corner castings support stacking up to 4 units high.

Transport Ready

Standard ISO dimensions for easy transport on flatbed trucks.

Dimensions & Details

External Length 16′ 0″ (4.88m)

External Width 8′ 0″ (2.44m)

External Height 8′ 6″ (2.59m)

Internal Length 15′ 8″ (4.78m)

Internal Width 7′ 8″ (2.34m)

Internal Height 8′ 0″ (2.44m)

Door Opening Width 7′ 6″ (2.29m)

Door Opening Height 7′ 6″ (2.29m)

Cubic Capacity 1,088 cu ft (30.8 m³)

Tare Weight 3,000 lbs (1,361 kg)

Max Payload 14,000 lbs (6,350 kg)

Floor Load Capacity 400 lbs/sq ft

Construction Details

Wall Material 12-gauge steel

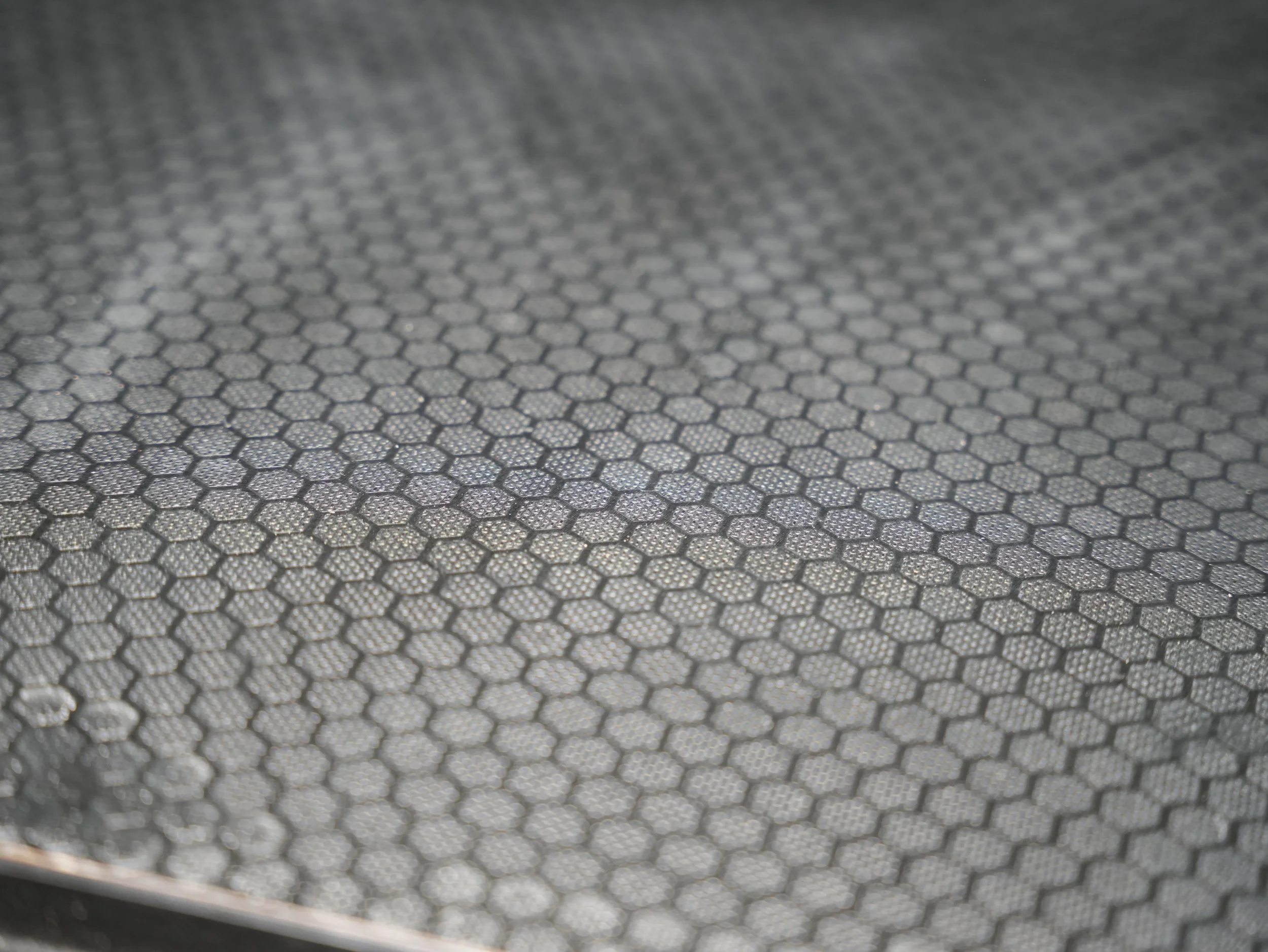

Floor Material 28mm marine plywood

Finish Industrial powder coat

Color Options‍ ‍Gray

Pickup is by appointment only. Customer must bring a suitable vehicle or trailer, proper tie-downs, straps, blocking, and any required assistance or equipment. Customer is responsible for verifying that Customer’s vehicle, trailer, hitch, tires, tie-downs, and load rating are appropriate for the product. Customer or Customer’s authorized agent must present valid identification and order confirmation at pickup. Seller may refuse pickup if Seller reasonable determines that the pickup vehicle, trailer, equipment, or loading conditions are unsafe. Title and risk of loss transfer to Customer when the Product is loaded onto Customer’s vehicle or trailer, or when Customer or Customer’s agent otherwise takes possession of the Product, whichever occurs first.
